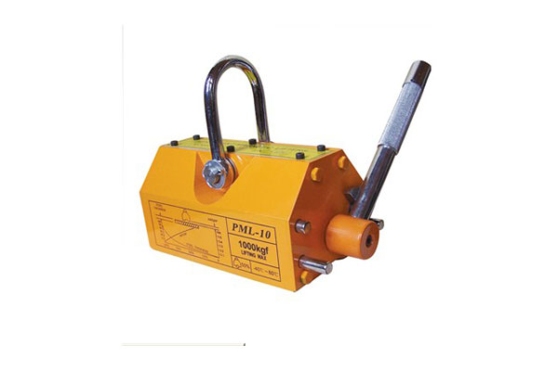

Hand Control Magnetic Chuck

Permanent magnetic lifter use new type and high performance Nd-Fe-B magneticmaterial. It is characterized by its smaller and lighter weight. Powerful lifting effort and few of residual magnetism, easy and safe to operate, without electricity in operation, long-period effort. They have been used widely tolift and transport the steel and iron.

Model	Rated lifting capacity(kg)	Shape size(mm)				Test Max Pull Off Force(kg)	Weight (kg)
Model	Rated lifting capacity(kg)	L	B	H	R	Test Max Pull Off Force(kg)	Weight (kg)
QZ1-0.1	100	100	82	82	126	350	3
QZ1-0.3	300	180	100	120	150	1050	12
QZ1-0.6	600	246	145	142	236	2100	28
QZ1-1	1000	280	165	164	284	3500	48
QZ1-2	2000	370	210	205	426	7500	90
QZ1-3	3000	458	286	264	521	10000	190
QZ1-5	5000	550	330	310	720	17000	420
