Jib Crane

Wall-mounted Jib Crane

Capacity: 1-32ton
Lifting height: 3-30m
Lifting speed: 0.35m/min-8m/min
Widely used in: workshops, warehouses, docks and other places

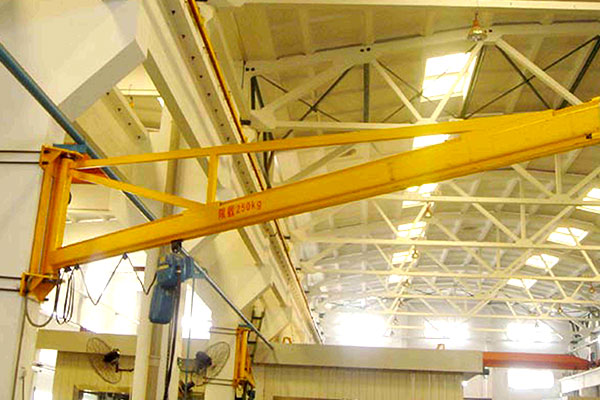

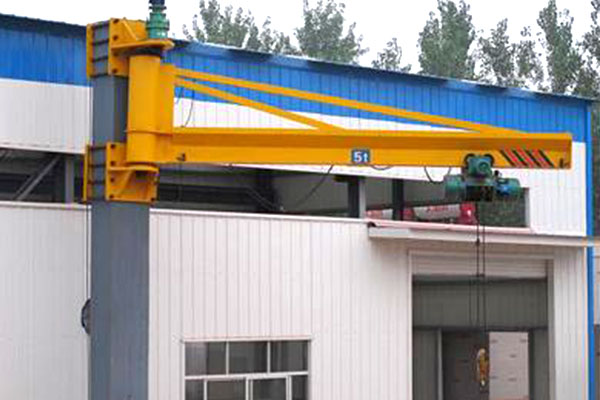

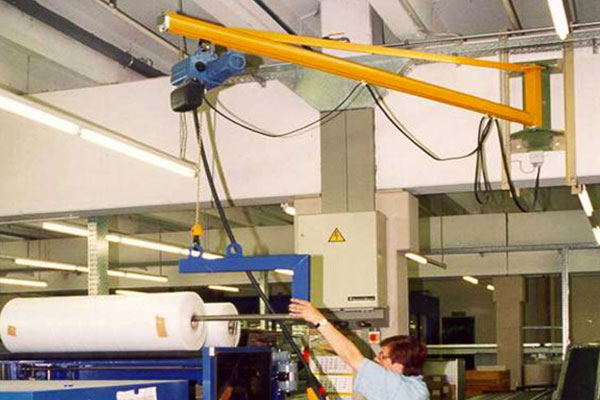

Wall mounted jib crane is composed by frame. rotating devices and electric chain hoist, etc. This jib crane is fixed on wall or concrete pillar, and could rotate as per client requests.

The rotary part could be manual and electric control; Electric hoist is installed on the jib crane arm rail to lift materials; The lifting and traveling system is controled by electric buttons, there has eight buttons which control the fast up, fast down, slow up, slow down, left and right rotary and the horizontal move of electric trolley.

This wall mounted jib crane is a engery saveing and high efficiency material handling equipment, widely applies in plant, workshop production line. assembly line. storehouse. port and other places for lifting materials.

Model	Rated lifting height (t)	Lifting Height(mm)	Min. rotation radius(mm)	Max. rotation radius(mm)	Overall height(mm)
BXS0.25	0.25	3,200	250	3000	800
BXS0.5	0.5	3,200	250		800
BXD1	1	3,400	300		950
BXD2	2	3,500	450	3,000	1,150
BXD3	3	4,500	500	4,000	1,350
BXD5	5	4,700	550	4,000	1,500
