Hoist

Wire Rope Electric Hoist Electric Wire Rope Winch

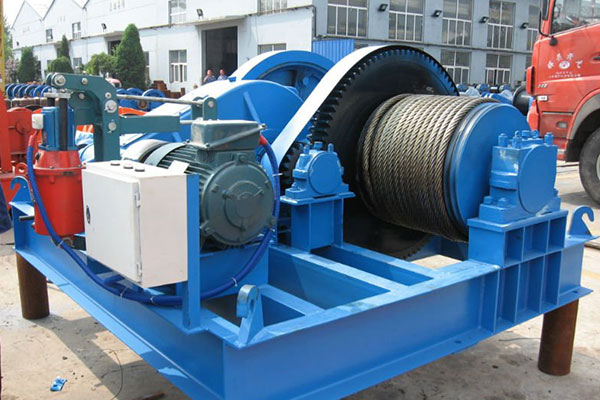

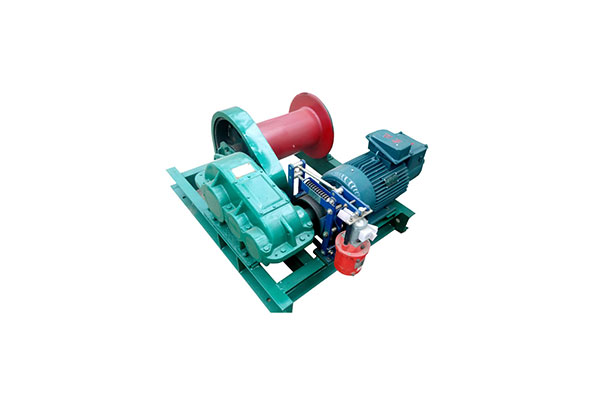

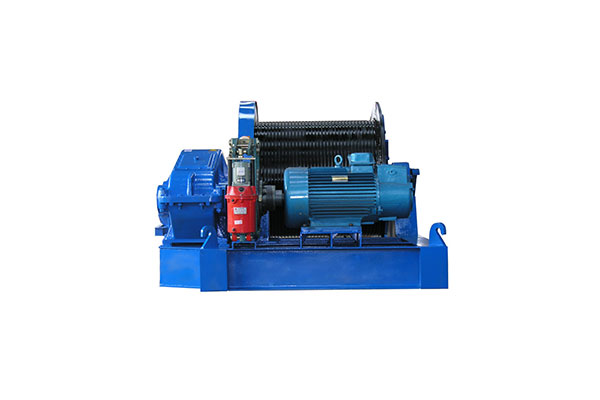

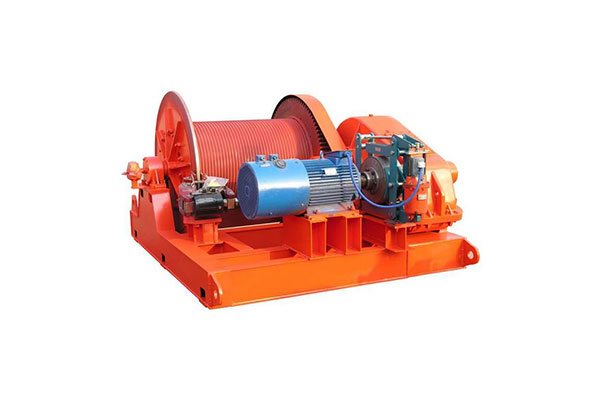

Wire Rope Electric Winch

Capacity: Capacity: 1-65ton
Lifting height: Lifting height: 10-3500m(rope capacity)
Lifting speed: Lifting speed: 5-20m/min
Widely used in: large factories, mine engineering, bridge engineering, etc.

Wire Rope Electric Winch is widely used to install and disassembly various huge and oversize concrete and steel structure as well as mechanical equipment. This electric winch is suitable for bridge construction, port, dock, quay, etc. In a word, it is suitable for large factories, mine engineering, bridge engineering, etc.

1.The standard capacity of electric winch: 1t, 2t, 3.2t, 5t, 8t, 10t, 12.5t, 16t, 20t, 25t, 32t, 50t, 65t.

2.The Max Rope length can reach to 3500m, Min. rope length can be 20m.

3.The control models:Hand wheel switch or control box with push buttons or remote control. 4.T

he main motors type: Y/YZ type + electric control box or YZR type + electric resistance box.

5.Working speed:5~20 m/min or customized design

1. Light aluminum shell

2. Electromagnetic brake

3. Electromagnetic contactor

4. 24V/36V transformer device

5. Hot forging with perfect strength chain

6. Hook is constructed of anti-pull and heat-treated steel and heat-treated steel
